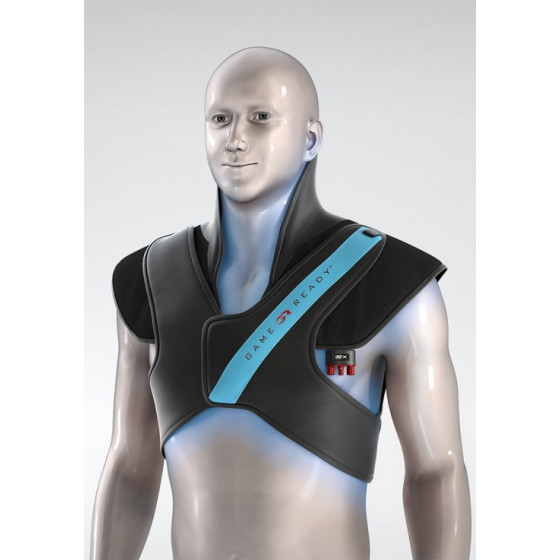

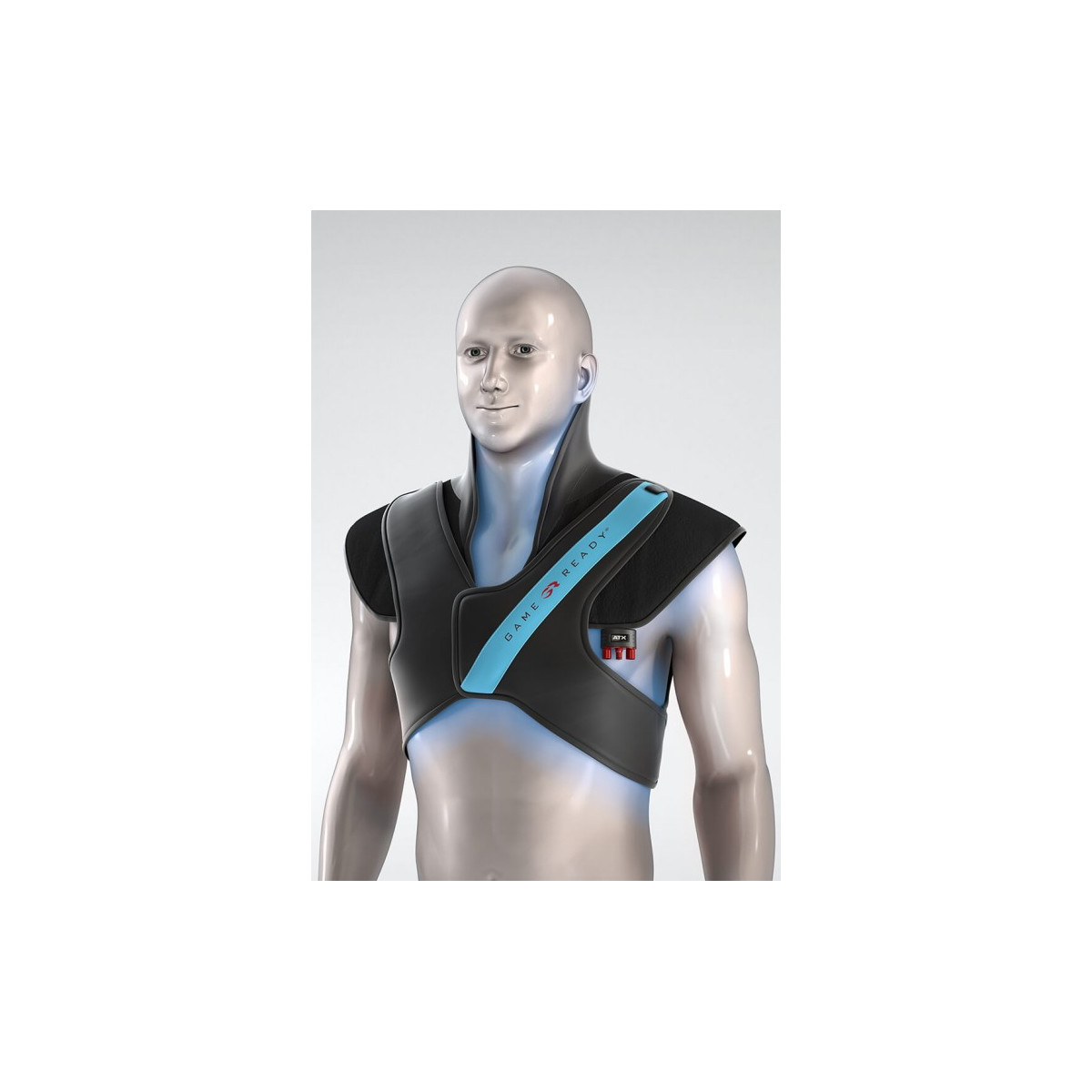

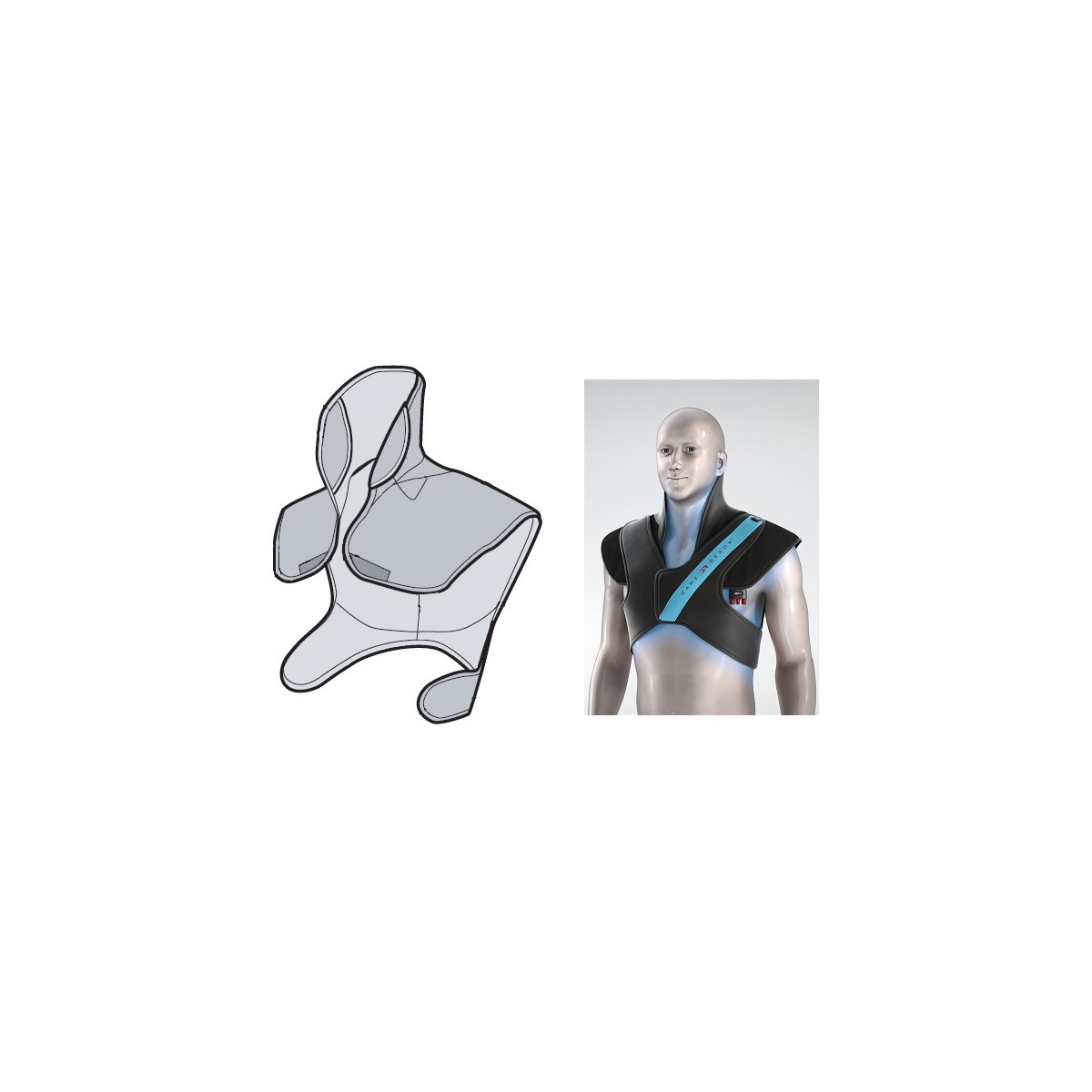

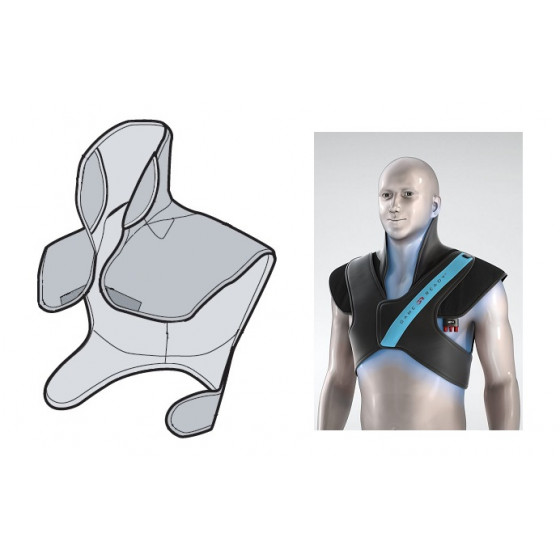

Sleeve for C-T Spine Wrap - Game Ready
£112.20 (incl. VAT)
CUSTOMER SERVICE
at your service Monday to Friday from 9:00 am to 5:00 pm
PAYMENT
100% SECURE
Assembling the sleeve with the technical C-T Spine wrap:
The heat exchanger (Ref. 520502-03) fits inside the sleeve (Ref. 510502) and is part of a pre-assembled wrap (Ref. 590502-03). If the heat exchanger is removed from the sleeve before cleaning or for any other reason, follow the instructions below to reinsert the heat exchanger into the sleeve.

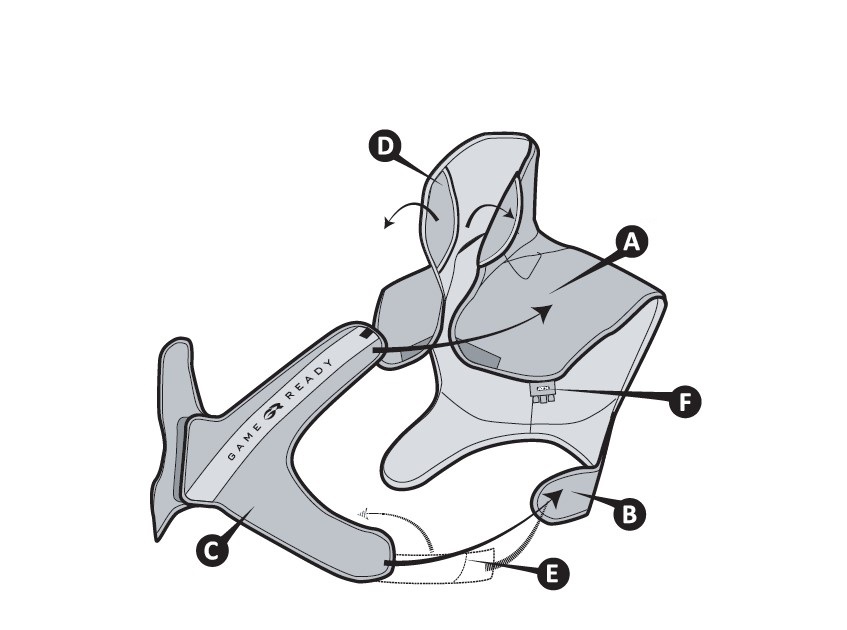

1- Lay the Sleeve with the zipper side down on a flat surface and remove the chest straps (C), then turn the Sleeve over so the zipper is facing up.

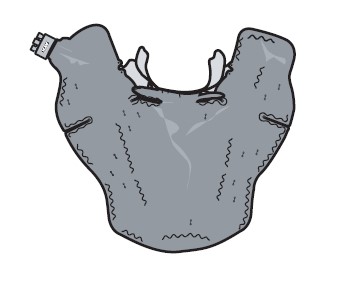

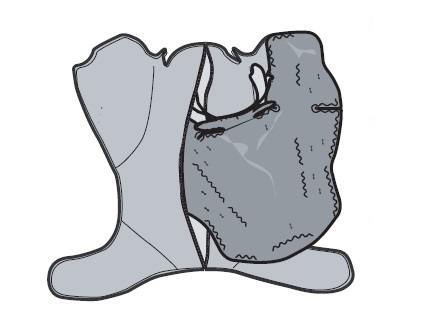

2- Lay the Heat Exchanger out flat, separate from the outer sleeve. Insert the Heat Exchanger into the Sleeve by feeding the connector through the opening (F) on the left shoulder. The blue side of the Heat Exchanger should touch the blue side of the Sleeve.
3- Be sure the Heat Exchanger is flat inside the sleeve on the back and shoulder areas. In order for the collar to lay correctly, rotate the shoulder wings back (A), then smooth the heat exchanger inside the collar. Zip the sleeve closed, and flip the Wrap over with the shoulder wings facing forward. The Wrap should resemble a vest with a high collar. Attach the chest straps (C) to complete assembly, orienting the logo on the chest straps as shown.
Video to change the sleeve of the C-T Spine wrap :
